Dolphin High Performance PCI and PCI Express Products

Dolphin has for more than two decades provided a variety of high performance, low latency products to solve the needs of financial, e-commerce, entertainment and embedded customers. These products enable customers to build and deploy faster more reliable systems.

Products range from high speed PCI Express Gen3 board and switch products to chip level PCI interconnect products with StarFabric. All products are designed as complete solutions including both hardware and software. The Dolphin Express IX family was introduced in 2010 and the Dolphin Express PX family was introduced in 2015. More information on the Dolphin Express products can be found in the Dolphin brochure or below.

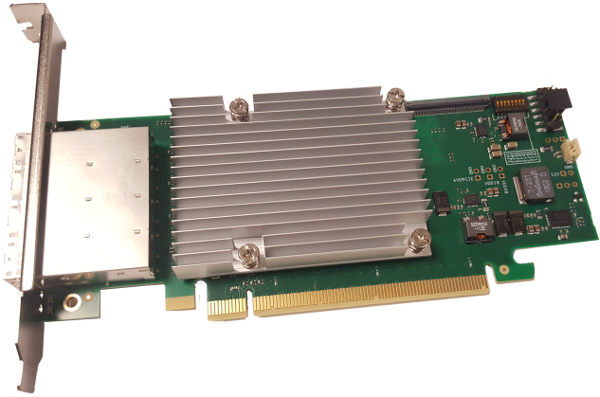

MXH930 and MXH932

PCIe Gen4 SFF-8644 NTB, Host & Target Adapter

Adapter for IO, Server and workstation connections

  • x16 Gen4 PCI Express host port
  • 4x SFF-8644 Gen4 PCI Express cable ports
  • 64 Gbit/s per port, total 256 Gbit/s performance
  • Host Clock Isolation (SSC + CFC)
MXH930 for non-transparent bridging (NTB) operations
MXH932 for standard PCIe transparent IO Expansion

Dolphin legacy Products

MXH830 and MXH832

PCIe Gen3 SFF-8644 NTB, Host & Target Adapter

Adapter for IO, Server and workstation connections

  • x16 Gen3 PCI Express host port
  • 4x SFF-8644 Gen3 PCI Express cable ports
  • 32 Gbit/s per port, total 128 Gbit/s performance
  • Host Clock Isolation (SSC + CFC)
MXH830 for non-transparent bridging (NTB) operations
MXH832 for standard PCIe transparent IO Expansion

Dolphin legacy Products

MXS824

Gen3 24 Port PCIe Switch

Gen3 24 port PCI Express switch supports standard I/O expansion and high throughput PCI Express clustering.

  • Gen3 24 port PCI Express host port
  • 19 Inch 1 U rack mountable switch
  • 32 Gbit/s per port
  • SFF-8644 connectors
MXS824 Gen3 PCIe Switch

Dolphin legacy Products

PXH830 and PXH832

PCIe Gen3 SFF-8644 NTB, Host & Target Adapter

Adapter for IO, Server and workstation connections

  • x16 Gen3 PCI Express host port
  • 4x SFF-8644 Gen3 PCI Express cable ports
  • 32 Gbit/s per port, total 128 Gbit/s performance
  • Host Clock Isolation (SSC + CFC)
PXH830 for non-transparent bridging (NTB) operations
PXH832 for standard PCIe transparent IO Expansion

PXH830 Gen3 PCIe Host Adapter

PXH820/PXH824 and PXH822/PXH826

PCIe Gen3 XMC Host & Target Adapter

Adapter for IO, Server and workstation connections

  • x16 Gen3 PCI Express host port
  • 4x SFF-8644 Gen3 PCI Express cable ports
  • 32 Gbit/s per port, total 128 Gbit/s performance
  • Host Clock Isolation (SSC + CFC)
PXH820/PXH824 for non-transparent bridging (NTB) operations
PXH822/PXH826 for standard PCIe transparent IO Expansion

PXH830 Gen3 PCIe Host Adapter

PXH810 and PXH812

PCIe Gen3 x8 iPass NTB, Host & Target Adapters

Adapter for IO, Server and workstation connections

  • x8 Gen3 Host port
  • PCI Express iPass® x8 cable port
  • 64 Gbit/s performance
  • Host Clock Isolation (SSC + CFC)
PXH810 for non-transparent bridging (NTB) operations
PXH812 for standard PCIe transparent IO Expansion

PXH810 Gen3 Host Adapter

IXS600

8 Port PCIe Gen3 iPass Switch

  • 8 Gen3 x8 PCI Express ports
  • Supports transparent expansion scale out
  • Non-transparent clustering switch
Eight port PCIe Gen3 switch for transparent and non-transparent scaling

IXS600 Gen3 PCIe Switch

IXH610 and IXH611

PCIe Gen2 NTB, Host & Target Adapter

  • Low profile PCI Express Host Adapter
  • Features transparent and non-transparent bridging (NTB)
  • Plug and Play PCI Express Adapter
  • Host Clock Isolation (SSC + CFC)
PCI Express Host Adapter for server, workstation and PC connections

IXH610 Gen2 PCIe Host Adapter

IXH620

PCIe Gen2 x8 XMC iPass NTB, Host & Target Adapter

  • Features transparent and non-transparent bridging (NTB)
  • Copper connections
  • x8 PCI Express support
  • Host Clock Isolation (SSC + CFC)
XMC PCI Express Adapter for VME, cPCI and VPX embedded systems

IXH620 Gen2 PCIe Host Adapter

Dolphin eXpressWare Software

Dolphin offers a complete software suite for shared memory computing.
More information can be found in the Dolphin software overview page,
or by clicking on individual components below:


Dolphin Software
