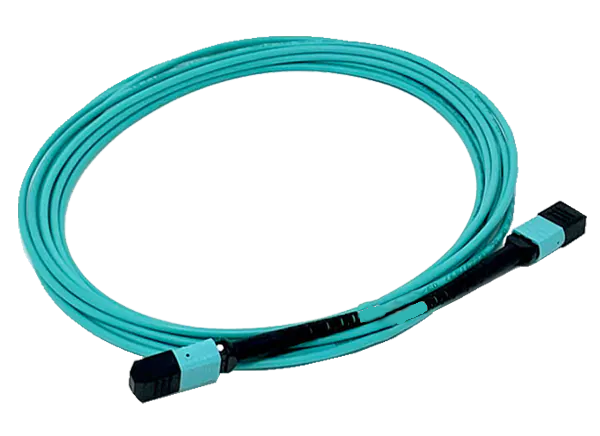

PCIe Patch Cables
The Dolphin AOC Pigtails and PCIe FireFly adapter cards PXH84x, MXH94x, and MXH95x adapters are carefully designed for maximum cable length and supports fiber patch cables up to 100 meters. All the below listed cables supports both PCIe 3.0 and 4.0 speeds.
PCIe 3.0 / 4.0 x4 Fiber Patch Cables
The x4 FireFly device configuration requires female-female, 12 strand, OM3 50/125, Key up - Key up (Type B) cables.
| Description | Length | Ordering code | Data Sheet |
|---|---|---|---|
| 1 meter x4 Optical Patch Cable | 1 meter | MTFC4FF-001M | Data Sheet |
| 10 meter x4 Optical Patch Cable | 10 meter | MTFC4FF-010M | Data Sheet |
| 50 meter x4 Optical Patch Cable | 50 meter | MTFC4FF-050M | Data Sheet |
| 100 meter x4 Optical Patch Cable | 100 meter | MTFC4FF-100M | Data Sheet |
*For custom lengths (MOQ 10) contact Dolphin.
PCIe 3.0 / 4.0 x8 Fiber Patch Cables
The x8 FireFly device configuration requires female-female, 24 strand, OM3 50/125, Key up - Key up (Type C) cables.
| Description | Length | Ordering code | Data Sheet |
|---|---|---|---|
| 10 meter x8 Optical Patch Cable | 10 meter | MTFC8FF-010M | |
| 50 meter x8 Optical Patch Cable | 50 meter | MTFC8FF-050M | |
| 100 meter x8 Optical Patch Cable | 100 meter | MTFC8FF-100M |
*For custom lengths (MOQ 10) contact Dolphin.
PCIe Cables for other products
PCIe 3.0 cables for PCIe 3.0 products.
